400S JLG

Back to Inventory
  • Utilizes the best-in-class gradeability and reach
  • Delivers enhanced lift and drive speeds for enhanced productivity
  • 600lbs Unrestricted; 1,000lbs Restricted

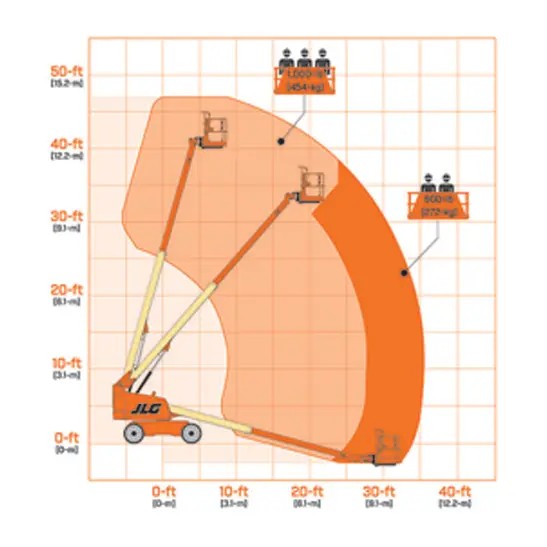

  • Platform Height 40-ft / 12.19-m
  • Horizontal Outreach 33-ft 3-in / 10-m
  • Swing 360 Degrees Continuous
  • Platform Capacity (Restricted) 1,000-lb / 454-kg
  • Platform Capacity (Unrestricted) 600-lb / 272-kg
  • Platform Rotator 180 Degrees Hydraulic
  • Weight* 13,640-lb / 6,187-kg
  • Max. Ground Bearing Pressure 58 psi / 4.19 kg/cm²
  • Drive Speed 4.25 mph / 6.8 km/h
  • Gradeability 45%
  • Tilt Cut Out 5 Degrees
  • Turning Radius (Inside/Outside) 6-ft 5-in (2.0-m) / 15-ft 8-in (4.8-m)

*Certain options or country standards increase weight

Details

The JLG 400S offers you the best-in-class gradeability and reach with low cost of ownership. This boom lift features the fastest lift and drive speeds for unmatched productivity and top performance.

Equipment Type
Aerial Lifts / Telescopic Boom Lift
