660SJC JLG

Back to Inventory
  • Utilizes a single drive steering joystick for one-handed operation.
  • he 600 Crawler Series delivers maximum mobility for your toughest jobs and terrains.
  • This-machine has zero turning radius to get around the job site easier
  • 550lbs Unrestricted; 750lbs Restricted

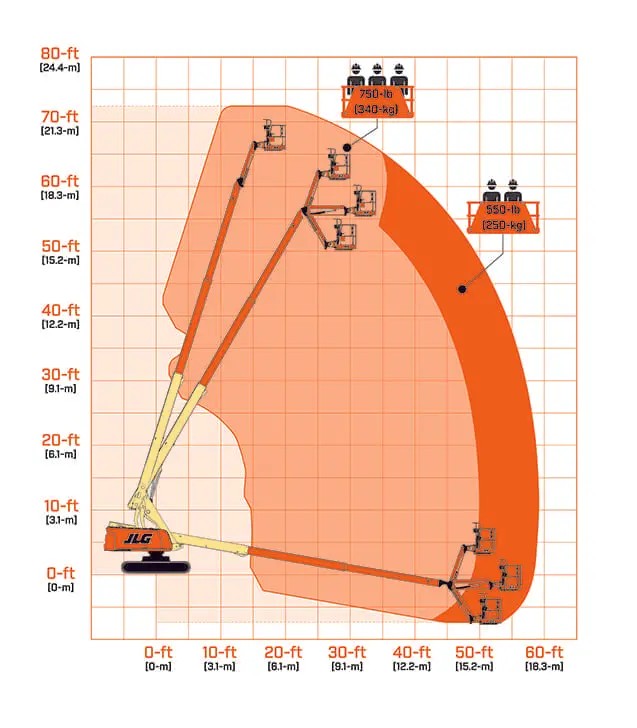

  • Platform Height 65-ft 7-in / 19.99-m
  • Horizontal Outreach 57-ft 0.6-in / 17.39-m
  • Swing 360 Degrees Continuous
  • Platform Capacity (Restricted) 750-lb / 340-kg
  • Platform Capacity (Unrestricted) 550-lb / 249-kg
  • Platform Rotator 180 Degrees Hydraulic
  • Jib Range of Articulation 132 Degrees (+71, -61)
  • Weight* 27,620-lb / 12,528-kg
  • Max. Ground Bearing Pressure 11.3 psi / 0.8 kg/cm²
  • Drive Speed 1.6-mph / 2.6 km/h
  • Gradeability 55%
  • Turning Radius Zero

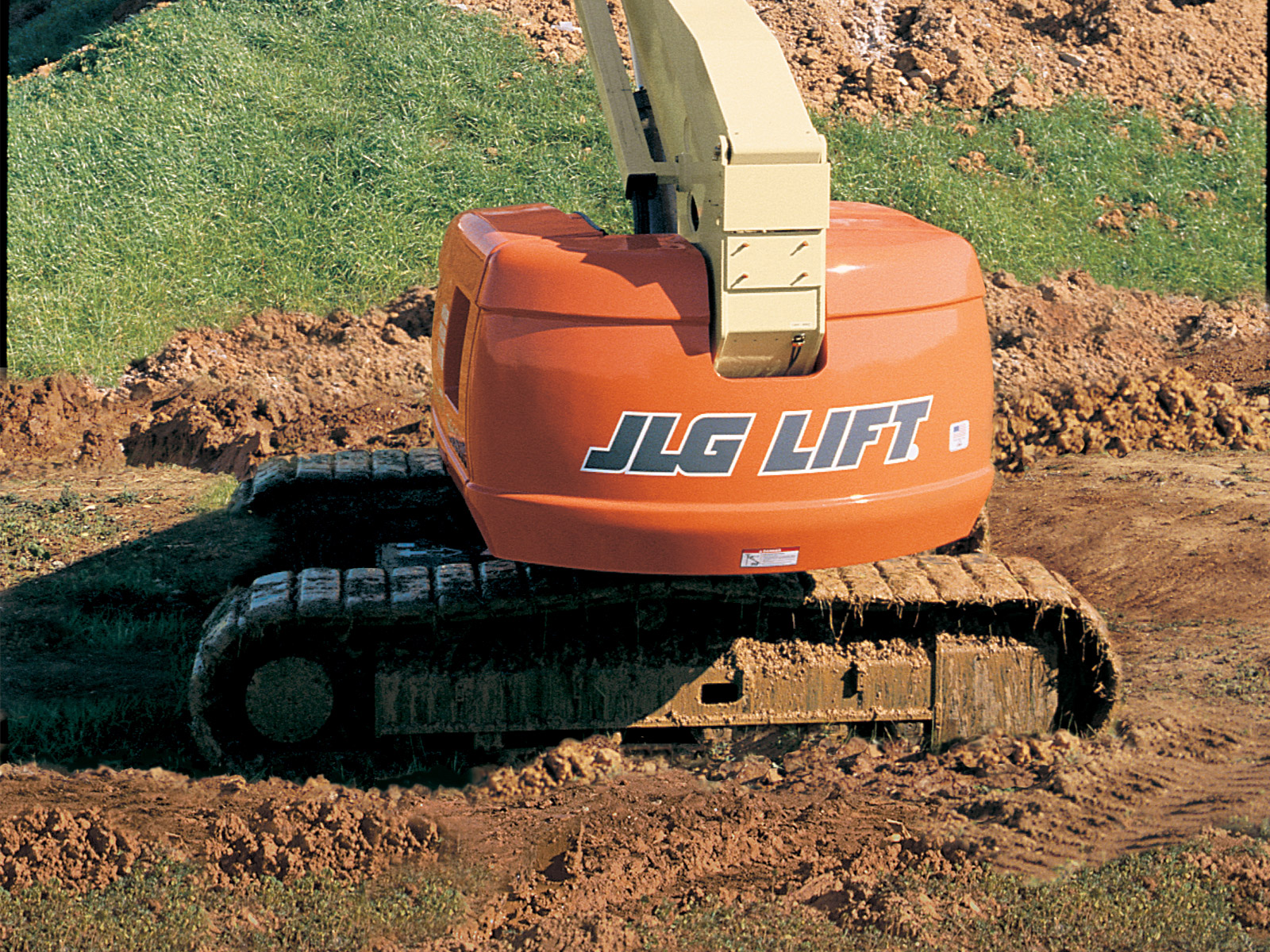

  • Type of Tracks Steel
  • Tracks Width 20-in / .51-m
Details

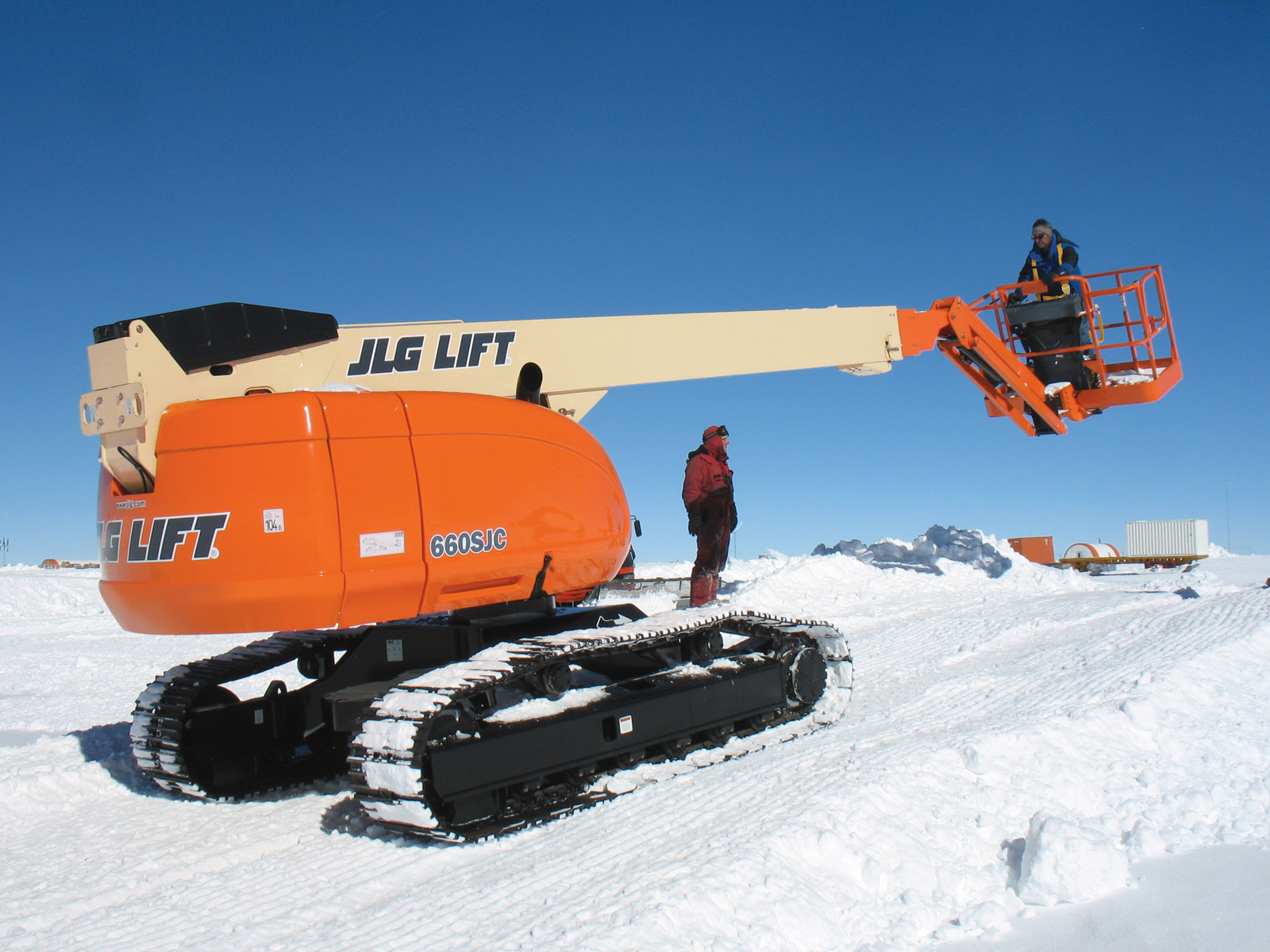

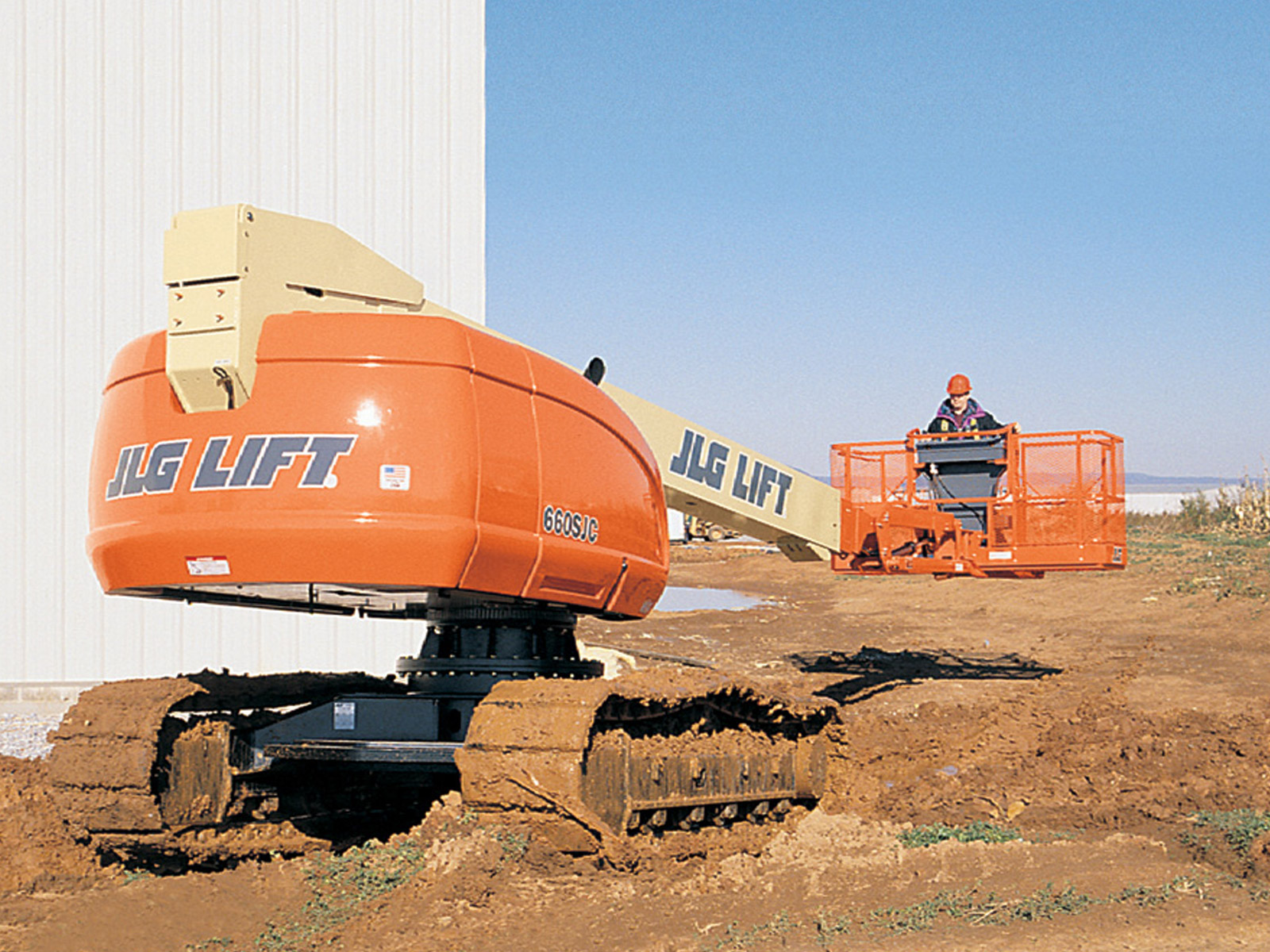

The JLG 660SJC provides the mobility you need for your toughest jobs and terrains. This boom lift features a single drive/steer joystick for one-handed operation and zero turning radius to get around your jobsite with ease.

Equipment Type
Aerial Lifts / Telescopic Boom Lift
